[2]:

import matplotlib.pyplot as plt
import straph as sg

[3]:

plt.rcParams["figure.figsize"] = (12,9)



Temporal Paths in Stream Graph¶

In this tutorial we will use the example below, feel free to change it (cf: Notebook on random stream graphs).

[4]:

path_directory = "examples/"
S = sg.read_stream_graph(path_nodes=path_directory + "example_nodes.sg",
                      path_links=path_directory + "example_links.sg")
S.describe()



Nb of Nodes :  6
Nb of segmented nodes :  11.0
Nb of links :  8
Nb of segmented links :  11.0
Nb of event times :  11

[5]:

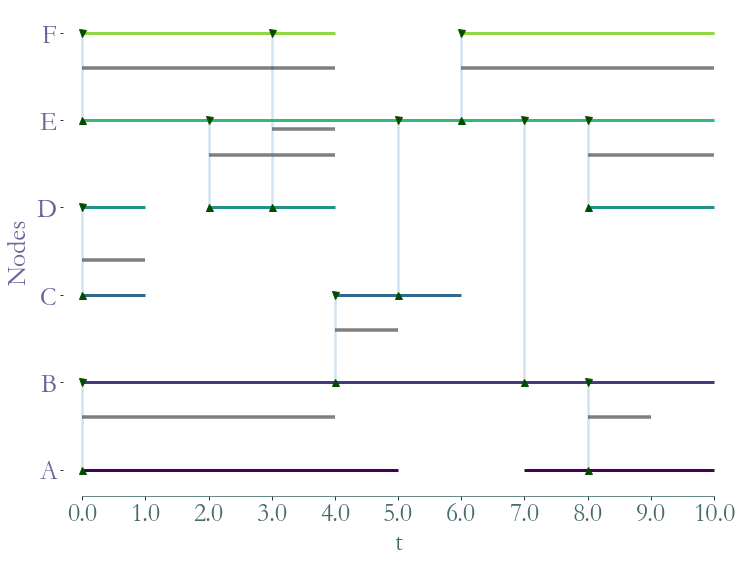

S.plot()



[5]:

<AxesSubplot:xlabel='t', ylabel='Nodes'>

../_images/notebooks_Temporal_Paths_5_1.png

In the following we use Straph’s API to compute different types of temporal paths.

We can consider two types of source and destination : a temporal node $(t_0,t_1,v) \in \overline{W}$ or a node $u \in V$ . Resulting in 4 types of temporal paths:

- temporal source -> destination
- temporal source -> temporal destination
- source -> temporal destination
- source -> destination



[6]:

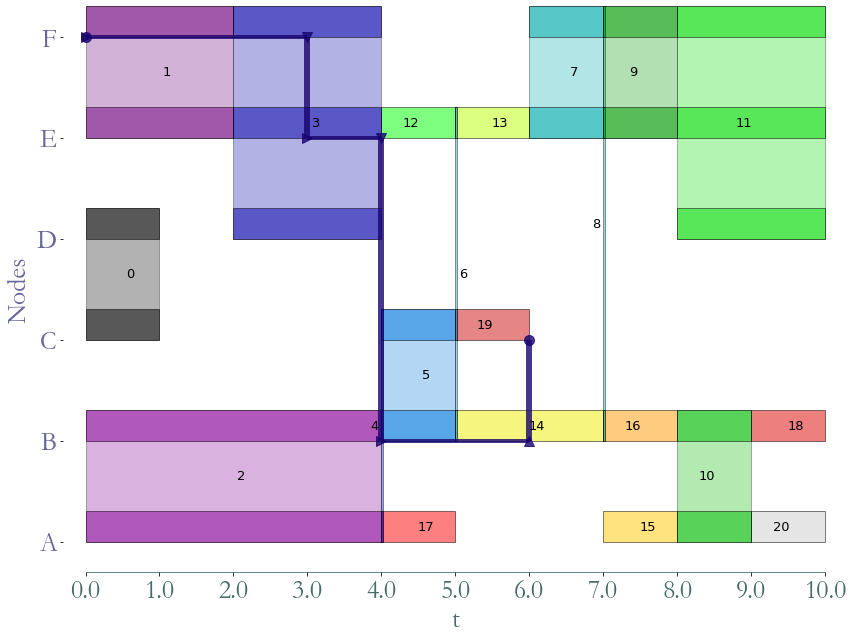

P = sg.Path(times=[0, 3, 4, 6],
         links=[(5, 5), (5, 4), (4, 1), (1, 2)], )
P.plot(S, dag=True)

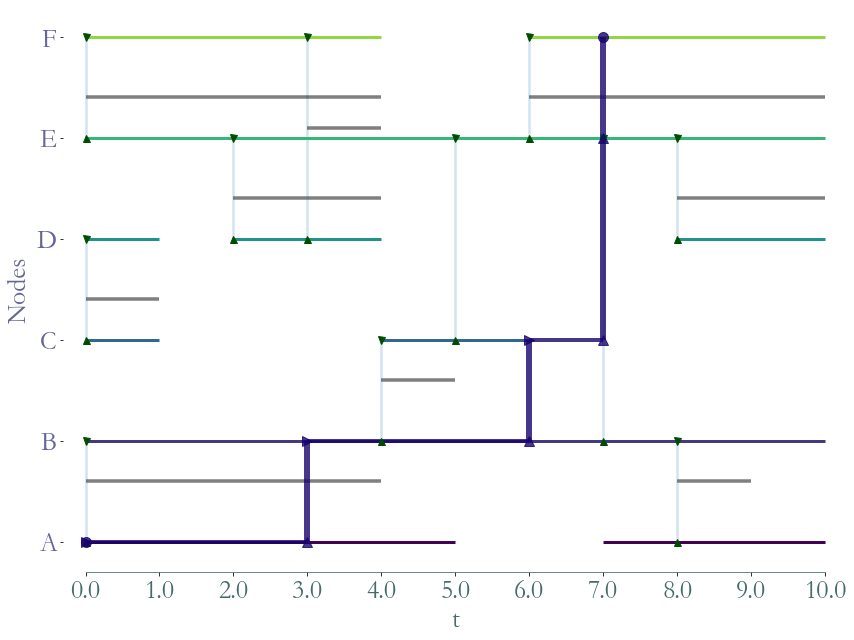

# FoP (0,A)-F
P = sg.Path(times=[0, 3, 6, 7, 7],
         links=[(0, 0), (0, 1), (1, 2), (2, 4), (4, 5)], )
P.plot(S)
# plt.show()

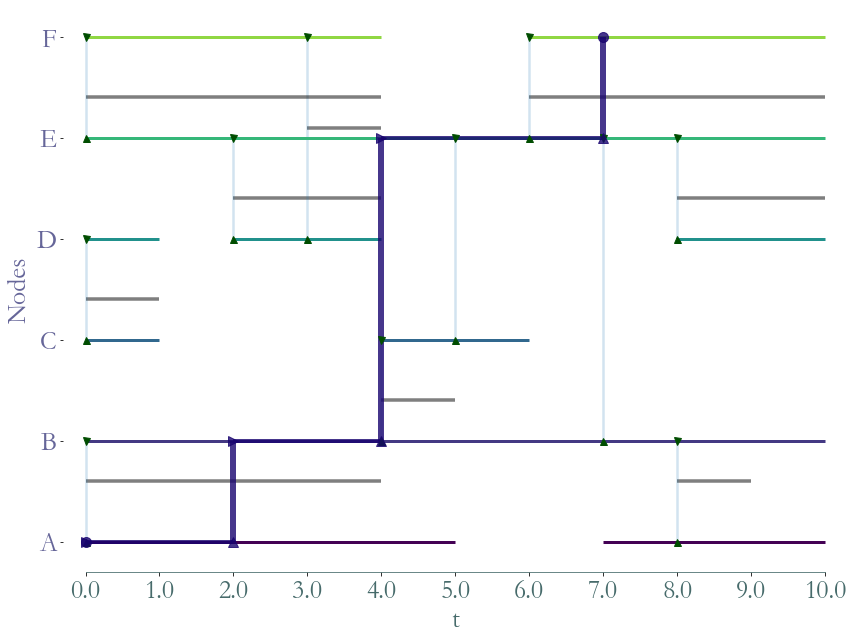

# SFoP (0,A)-F
P = sg.Path(times=[0, 2, 4, 7],
         links=[(0, 0), (0, 1), (1, 4), (4, 5)], )
P.plot(S)

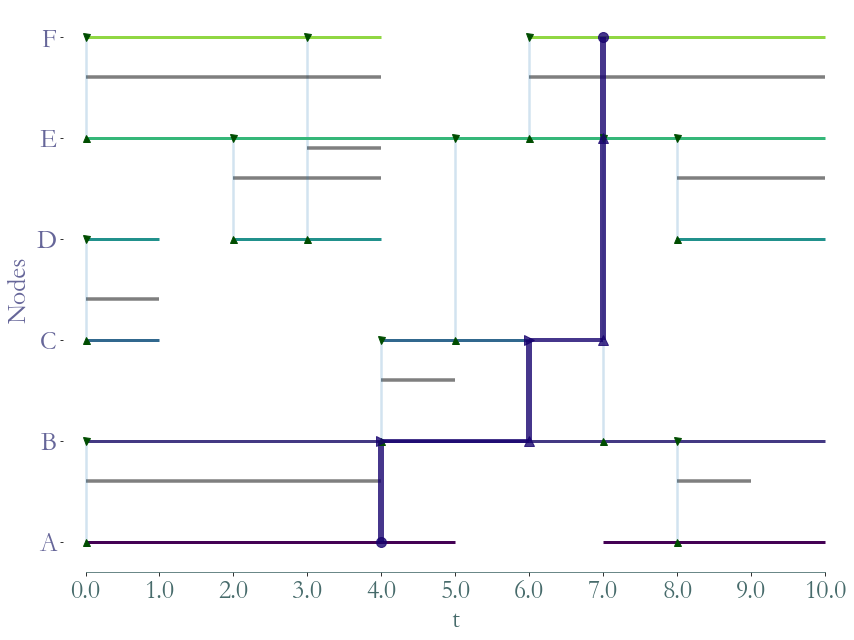

# FP A-F
P = sg.Path(times=[4, 6, 7, 7],
         links=[(0, 1), (1, 2), (2, 4), (4, 5)], )
P.plot(S)
# plt.show()

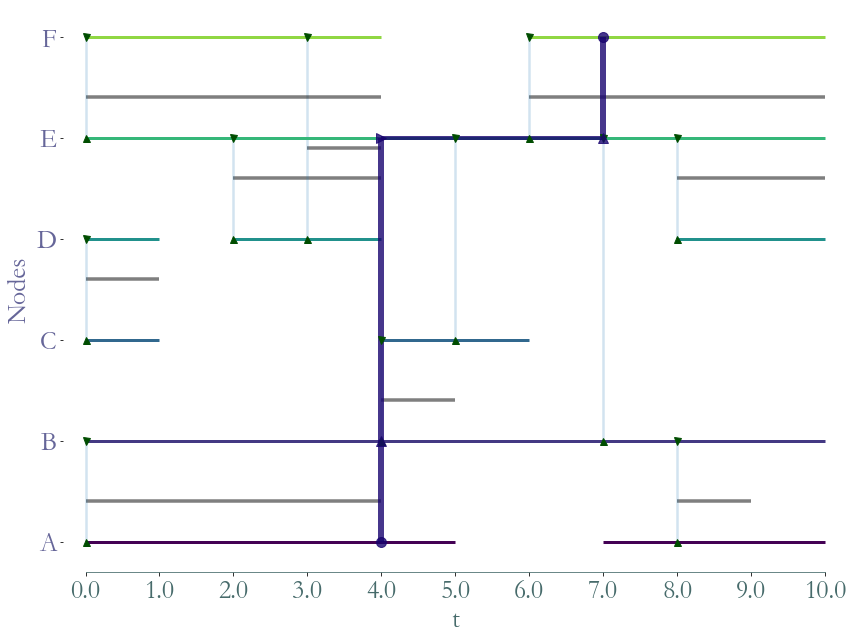

# SFP A-F
P = sg.Path(times=[4, 4, 7],
         links=[(0, 1), (1, 4), (4, 5)], )
P.plot(S)
# plt.show()

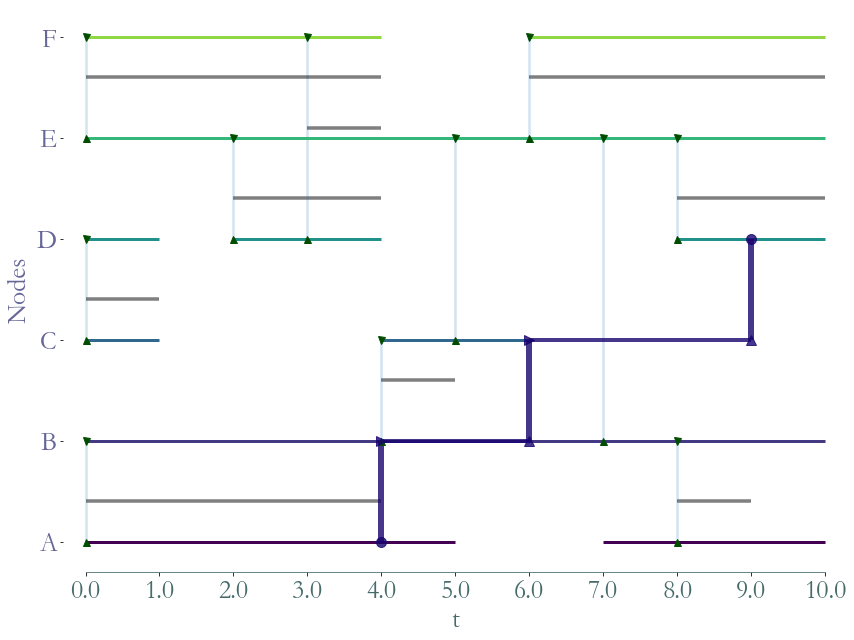

# SP A-D
P = sg.Path(times=[4, 6, 9],
         links=[(0, 1), (1, 2), (2, 3)])
P.plot(S)
# plt.show()

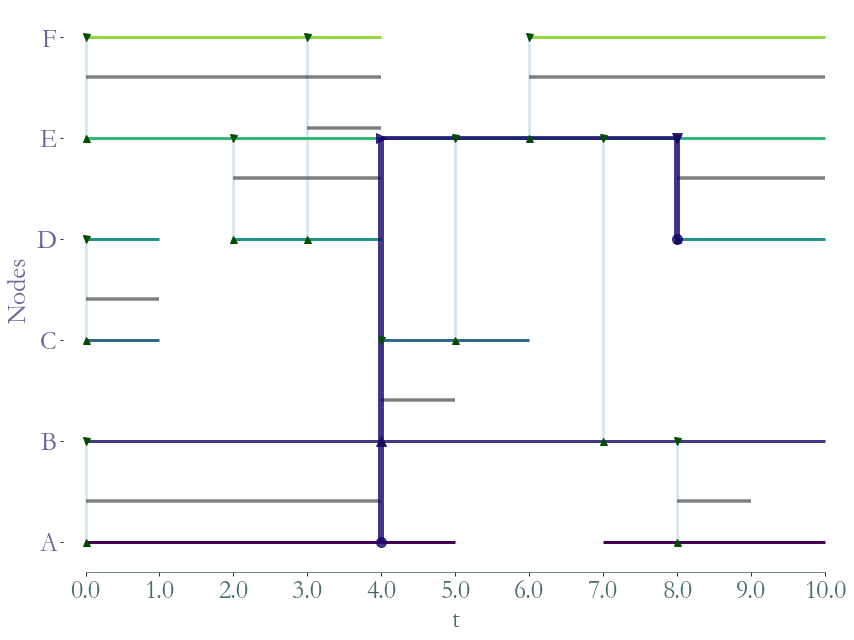

#  FSP A-D
P = sg.Path(times=[4, 4, 8],
         links=[(0, 1), (1, 4), (4, 3)], )
P.plot(S)
plt.show()

S.times_to_reach((0, 5, 0))




../_images/notebooks_Temporal_Paths_8_0.png

../_images/notebooks_Temporal_Paths_8_1.png

../_images/notebooks_Temporal_Paths_8_2.png

../_images/notebooks_Temporal_Paths_8_3.png

../_images/notebooks_Temporal_Paths_8_4.png

../_images/notebooks_Temporal_Paths_8_5.png

../_images/notebooks_Temporal_Paths_8_6.png

[6]:

{5: 0, 4: 0.0, 3: 2.0, 2: 5.0, 1: 5.0, 0: 8.0}

Optimal temporal paths¶

We consider the following types of temporal paths and their corresponding features:

- Foremost Path - Time To Reach
- Fastest Path - Latency
- Shortest Path - Distance
- Foremost Shortest Path - Distance, Duration
- Fastest Shortest Path - Distance, Duration
- Shortest Fastest Path - Latency, Length



[7]:

label_to_node = {v:k for k,v in S.node_to_label.items()}



1. L-Algorithm¶

[7]:

#TODO : Quick description then ref to paper !

1.1 Foremost Path¶

Let’s start with a temporal source and a temporal destination.

[10]:

source = (0,5,label_to_node['A'])
destination = (8,10,label_to_node['D'])

Let’s compute the time to reach (8,10,D) from (0,5,A). By default the starting time is $b$ if the source is $(b,e,u)$ .

[11]:

ttr = S.times_to_reach(source,destination)
ttr

[11]:

{(8, 10, 3): inf}

We can specify a starting time, which belong to the temporal source (obviously), let’s say 4.

[12]:

source = (0,5,label_to_node['A'])
destination = (8,10,label_to_node['D'])
start_time = 4
ttr = S.times_to_reach(source,destination,start_time)
ttr



[12]:

{(8, 10, 3): inf}

Now, with a source node and a temporal destination:

[13]:

source = label_to_node['A']
destination = (8,10,label_to_node['D'])
ttr = S.times_to_reach(source,destination)
ttr



[13]:

{(8, 10, 3): inf}

Let’s add a starting time:

[14]:

source = label_to_node['A']
destination = (8,10,label_to_node['D'])
start_time = 8
ttr = S.times_to_reach(source,destination,start_time)
ttr



[14]:

{(8, 10, 3): inf}

Finally with a source node and a destination node:

[15]:

source = label_to_node['A']
destination = label_to_node['D']
ttr = S.times_to_reach(source,destination)
ttr



[15]:

{3: 8.0}

Let’s add a starting time:

[16]:

source = label_to_node['A']
destination = label_to_node['D']
start_time = 3
ttr = S.times_to_reach(source,destination,start_time)
ttr



[16]:

{3: 5.0}

The input for a single source can be a source node or a temporal source node.

[17]:

source = (0,5,label_to_node['A'])
ttr = S.times_to_reach(source)
ttr



[17]:

{5: 0, 4: 0.0, 3: 2.0, 2: 5.0, 1: 5.0, 0: 8.0}

[18]:

source = (0,5,label_to_node['A'])
start_time = 3
ttr = S.times_to_reach(source,start_time=start_time)
ttr



[18]:

{5: 0, 4: 0, 3: 0, 2: 2.0, 1: 2.0, 0: 5.0}

[19]:

source = label_to_node['A']
ttr = S.times_to_reach(source)
ttr



[19]:

{0: 0.0, 1: 0.0, 2: 4.0, 4: 5.0, 5: 6.0, 3: 8.0}

[20]:

source = label_to_node['A']
start_time = 7
ttr = S.times_to_reach(source,start_time=start_time)
ttr



[20]:

{0: 0}

1.2 Other kind of optimal paths¶

The API is the same for all type of minimum temporal path (the start_time option is only available for foremost path and shortest foremost path).

Shortest Foremost Path¶

[21]:

source = (2,label_to_node['A'])
destination = label_to_node['D']
ttr,length = S.times_to_reach_and_lengths(source,destination)
ttr,length



[21]:

({3: 6.0}, {3: 3})

[22]:

source = (2,label_to_node['A'])
destination = label_to_node['D']
start_time = 4
ttr = S.times_to_reach_and_lengths(source,destination,start_time)
ttr



[22]:

({3: 4.0}, {3: 3})

Shortest Path¶

[23]:

source = label_to_node['A']
destination = label_to_node['D']
distances = S.distances(source,destination)
distances



[23]:

{3: 3}

Fastest Path¶

[24]:

source = label_to_node['A']
destination = label_to_node['D']
latencies = S.latencies(source,destination)
latencies



[24]:

{3: 4.0}

Fastest Shortest Path¶

[25]:

source = label_to_node['A']
source = (0,5,label_to_node['A'])
distances,durations = S.distances_and_durations(source)
distances,durations



[25]:

({5: 0, 4: 1, 3: 1, 2: 2, 1: 2, 0: 3},
 {5: 0, 4: 0, 3: 0, 2: 1.0, 1: 3.0, 0: 4.0})

[26]:

source = label_to_node['A']
destination = label_to_node['D']
distances = S.distances_and_durations(source)
distances



[26]:

({0: 0, 1: 1, 2: 2, 4: 2, 5: 3, 3: 3},
 {0: 0, 1: 0, 2: 0.0, 4: 3.0, 5: 3.0, 3: 4.0})

Shortest Fastest Path¶

[27]:

source = label_to_node['A']
latencies,lengths = S.latencies_and_lengths(source)
latencies,lengths



[27]:

({0: 0, 1: 0, 2: 0.0, 4: 1.0, 5: 2.0, 3: 4.0},
 {0: 0, 1: 1, 2: 2, 4: 3, 5: 4, 3: 3})

[28]:

source = (0,5,label_to_node['A'])
destination = label_to_node['D']
latencies,lengths = S.latencies_and_lengths(source,destination)
latencies,lengths



[28]:

({3: 0}, {3: 1})

[29]:

source = label_to_node['A']
destination = label_to_node['D']
latencies,lengths = S.latencies_and_lengths(source,destination)
latencies,lengths



[29]:

({3: 4.0}, {3: 3})

Condensation Based Path Algorithms¶

We propose alternative methods to compute Foremost Paht and Fastest Path using the Condensation Graph of $S$ .

[38]:

source = label_to_node['A']
dag = S.condensation_dag()

# Foremost Path
ttr = dag.times_to_reach_ss(source)
print("Times to reach :",ttr)
# Fastest Path
lat = dag.latencies_ss(source)
print("Latencies :",lat)



Times to reach : {2: 4.0, 3: 8.0, 4: 5.0, 5: 6.0, 0: 0, 1: 0.0}
Latencies : {2: 0, 3: 4.0, 4: 1.0, 5: 2.0, 0: 0, 1: 0}
